LVD introduces next generation tube laser cutting machine

July 2, 2021 4:13 pm

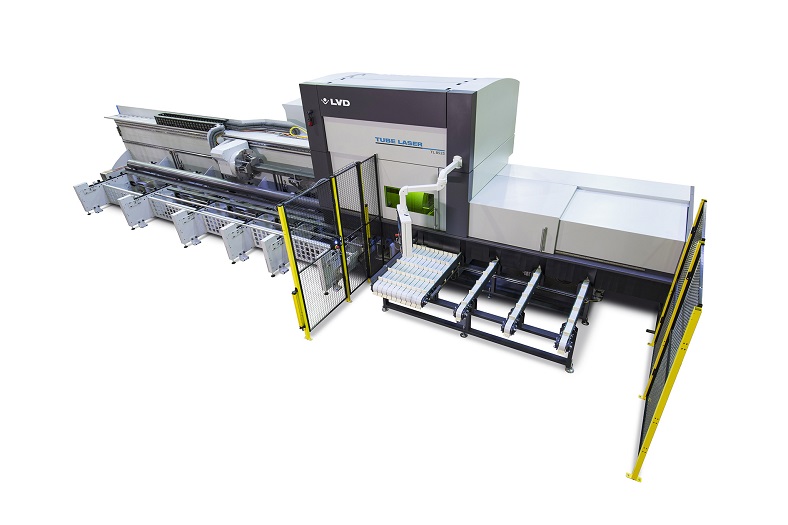

LVD Company NV introduces TL 8525 to its line of tube laser cutting machines.

The new generation tube laser, designed from the ground up, comes equipped with a number of high-performance features to optimise tube cutting for even the most complex of applications. With a large 8500 mm infeed length, the TL 8525 can process tubes up to 250 mm round or square. Standard machine features include a 45-degree 3D tilt-axis cutting head for bevelling, 6-position front loader, and a wide X-axis cutting head range of 1190 mm to maximise material usage.

Designed for productivity
The TL 8525 is built for high productivity. The machine can process tube lengths of 8500 mm, a maximum part length of 3000 mm, and can clamp and cut tubes up to a diameter of 250 mm. A substantial 400 mm Z-axis permits the cutting of larger profiles.

A completely new design, its welded steel structure provides high rigidity and dynamics. The pre-mounted chuck and steady rest facilitate quick and easy machine installation and start-up. The
TL 8525 maintains the compact footprint of other TL models and offers the advantage of accessibility on all sides of the machine. Because loading and unloading is handled on one side, the machine can fit in a small space or against a wall.

Leading-edge features are built in

A 6-position front loader is also a standard feature. This semi-automatic loading device provides a high level of material loading flexibility. It handles up to six tubes and offers six positions of even the largest diameter 250 mm tubes. The system can be loaded with different types of tubes in different sizes and can be interrupted during processing to add a new tube.  Unlike a bundle feed system, there is no waiting to rebind the bundle in the loader, remove it from the machine and then reload a new bundle. The flexibility of material loading efficiently handles the needs of both small batch and long-run production.

The TL 8525 comes equipped with a 2 kW IPG fibre laser source capable of cutting a range of ferrous and non-ferrous materials. A 4-kW laser source is optional.

For more info, visit:  www.lvdgroup.com.
