SCHURTER launches push button switch with capacitive sensor technology

September 11, 2017 12:13 pm

SCHURTER is launching its new CPS family of push button switches with capacitive touch sensor technology inside. The new switch family caters to the latest technology trend for robust momentary and latching push button switches while sporting an elegant modern look that makes them the perfect choice for use in applications wherever a high quality aesthetic appearance plays a role. In addition to an IK rating 09 and IP rating 67, the series offers a predefined standard range with many visual and functional options to choose from. These features allow the customer to adapt the push button, or the switch in general, to their individual electrical and mechanical requirements.

The CPS series uses capacitive sensor technology, whereby a touch of the finger on the sensor area causes a change in the electrical field which in turn causes the switch to change its state; this occurs without any pressure on the actuator. The capacitive touch technology eliminates the need for any moving parts, hence making the CPS a long-life product capable of an unlimited number of actuations. The CPS actuator expands further on actuation options with a so-called finger guide, which is designed to enhance the user experience.

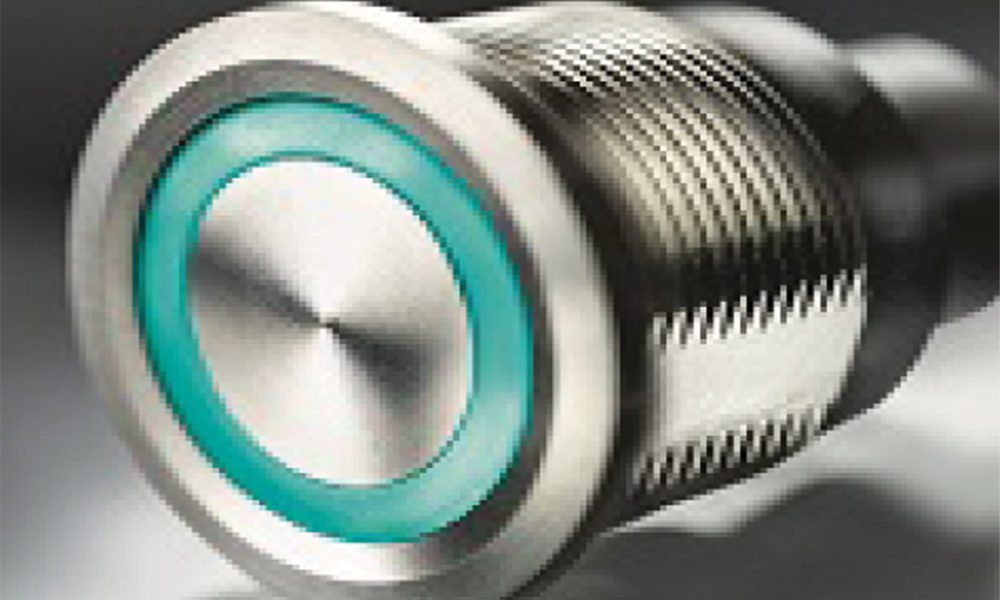

The CPS series is made of high-grade stainless steel in 16 mm, 19 mm and 22 mm diameter housings. The variable input supply voltage is 5 – 28 VDC. Switching voltage is maximum 42 / 60 VAC / VDC. Switching current is maximum 100 mA. Operating temperature range is (-) 20 C to (+) 60 C. A wide range of illumination options, starting with the selection of a ring illuminated or area illuminated version, are offered. The area illuminated version is made of scratch-resistant biocompatible ceramics. A single colour, bicolour, or multicolour configuration is possible. Besides the basic colours red, green, and blue, the CPS also offers additive colours like cyan, magenta, yellow, and white for custom colour variations.

The CPS can easily be customised to specific customer requirements by simply choosing from a list of options in the configurator list provided in the data sheet, or according to application specific requirements beyond what is shown. The unique switch series is suitable for many different applications in various industry sectors, like industrial automation, food service and processing equipment, lab equipment, door and access control panels, white goods, vending and ticketing machines, just to name a few. Pricing starts at under $25.00 each per 100 pieces. Packaging is 10 pieces per box.

For more details, visit www.schurter.co.in
