Mitutoyo Quick Vision Active: A cost-effective CNC vision measuring system

December 11, 2017 11:00 am

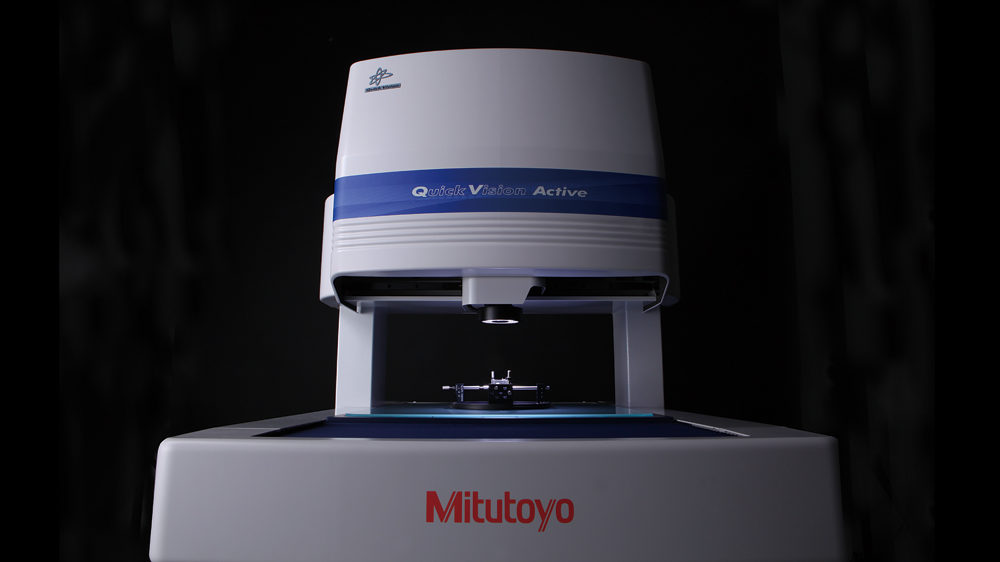

Quick Vision Active CNC vision measuring system is an easy-to-operate, space-saving model with advanced functionality to meet many contact and noncontact measuring requirements.

It is highly efficient and flexible, offering a wide field of view with interchangeable objective zoom lenses to meet the challenges of measuring small to large features. The 8-step zoom lens can achieve a magnification range of 0.5X to 7X while maintaining crisp image quality. With the choice of optional 1X, 1.5X& 2X objective lenses, it is possible to further widen the magnification range on the screen.

Quick Vision Active is available with measuring ranges of 250 x 200 x 150 mm or 400 x 400 x 200 mm, with or without the touch-probe measuring option. QVPAK software uses edge detection and pattern recognition to locate and orientate the coordinate system with minimal operator input, ensuring accuracy and repeatability of the measurement results.

Features
• Accuracy: E1(X, Y) = (2.0+0.3L/100); E1(Z) = (3.0+0.5L/100); E2(XY) = (2.5+0.4L/100)
• Programmable 4-quadrant LED ring light
• Programmable LED stage and coaxial light
• High resolution and high speed CMOS colour camera
• High quality zoom optics with interchangeable objective lenses
• Compact design
• Powerful yet user-friendly QVPAK software.
